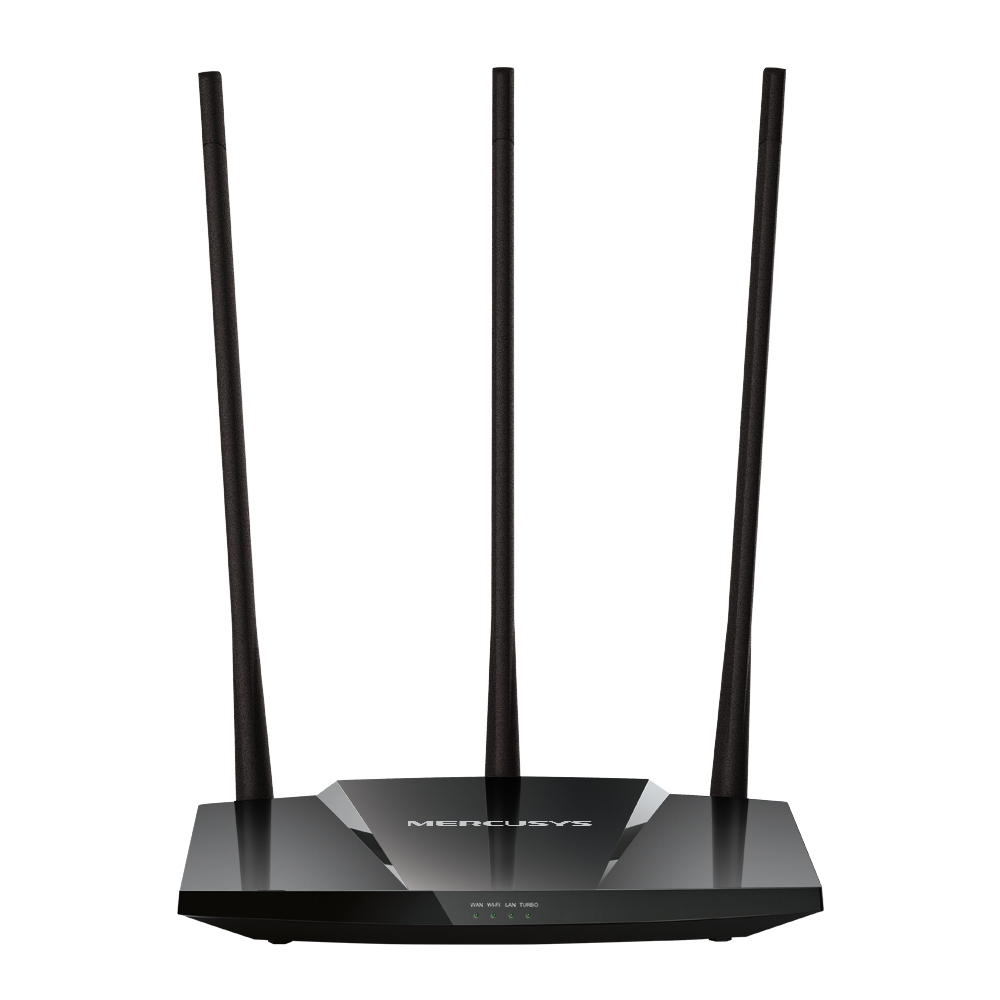

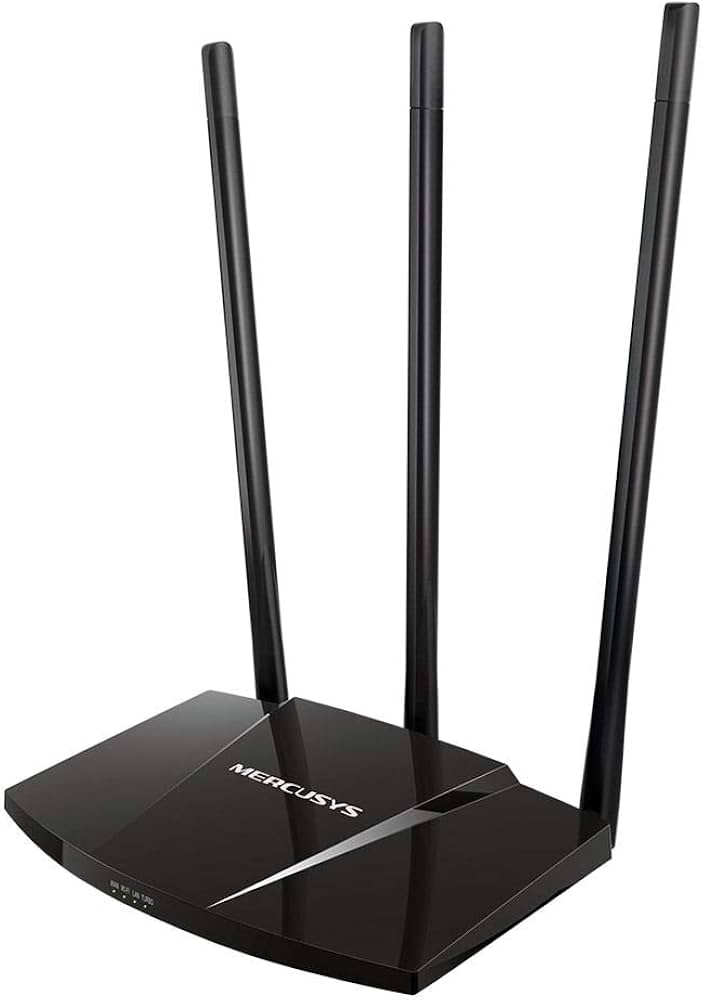

Mercusys MW330HP 300Mbps High Power Wireless N Router

Description

• 300Mbps wireless speed – ideal for fast video streaming, online gaming and file downloads
• Turbo button – instantly enhances the Wi-Fi signal and expands wireless coverage
• PA chip – provides up to 2x transmission power, strong enough to penetrate walls and other obstacles
• High gain 7dBi antennas – strongly boosts wireless range and coverage
• Easy installation – intuitive webpage guides you through the setup process in minutes

Dimensions (W X D X H)

192mm×127mm×36mm

External Power Supply

9V/0.6A

Antenna Type

3 * 7dBi

Signal Rate

11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)

Button

TURBO, WPS/RESET

Wireless Standards

IEEE 802.11b/g/n

Frequency

2.402-2.482GHz

Reception Sensitivity

270M: -74dBm@10% PER
130M: -76dBm@10% PER
54M: -78dBm@10% PER
11M: -90dBm@10% PER
6 M: -94dBm@10% PER
1 M: -96dBm@10% PER

Interfaces

3*10/100Mbps LAN Ports
1*10/100Mbps WAN Port

Package Contents

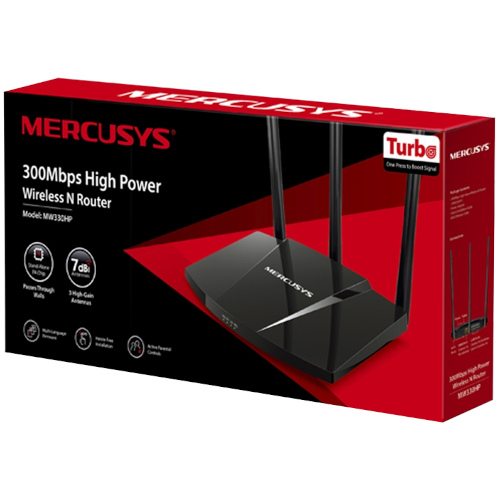

300Mbps High Power Wireless N Router
( MW330HP )
Power Adapter
Quick Installation Guide
Ethernet Cable

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing

Transmission Power

<20dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridging

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP/L2TP

Management

Access Control
Local Management
Remote Management

DHCP

Server

Port Forwarding

Virtual Server, UPnP, DMZ

Firewall Security

IP and MAC Address Binding

Guest Network

2.4GHz Guest Network
